Display | LCD Display |
Power self-checking Function | Upon starting up ,the system will automatically diagnose whether
the operation is ok or not Automatically display the content of system malfunction |
Operation Method | 1)Chinese/English menu function for choice 2) Computer remote networking. |
Speed | The fastest speed: 100 people per minute .Detection speed of
user-defined adjustment. |
Back light Time | Adjustable continual display time: 0 to 99 Seconds |
Calendar | Minute , Hour , Day Month and year . |

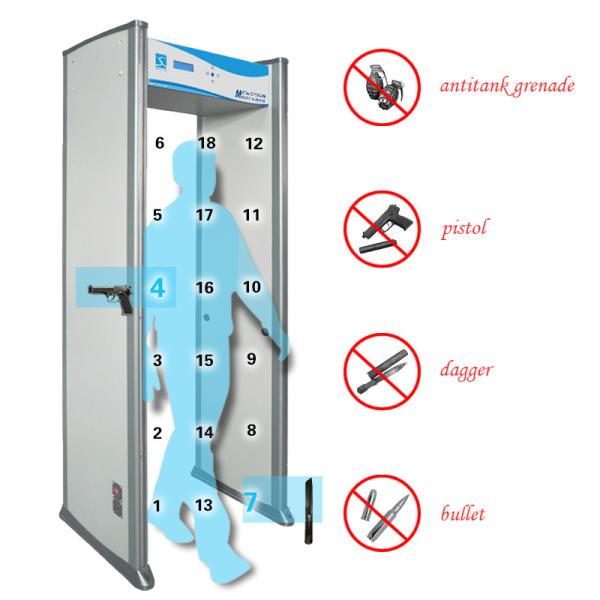

Detecting Zone | Multi-zone and signal zone for your option according to
requirements(default value: 6 zones ) |
Zone Performance | 1) Partition zone of Digital metal detector according to the body
structure 2) Networking with overlapping detection methods ,eliminating the
detection region of “weak zones” and “shadow area” 3) Adopting the single frequency formed very uniform magnetic area
density in the excitation technique detecting zones 4) Strong penetration, high sensitivity and stable performance. |
Alarm Indication | 1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255
Degree. 2)Around the goal post ,can be directly show inspection zones
through the LED alarm light ,and accurately show the corresponding
height of the body hidden prohibited items. |
Sensitivity Adjustment | 1).Can evenly adjust 255 degree sensitivity of every zone 2).Preset in line with the weight , volume, dimension and position
of metal items to exclude false alarm of coins, keys, jewelry and
buckles and so on |
Strong anti-jamming capability | 1)Adopting the advanced interactive receiving and transmitting 2) Automatically detecting and tracking by temperature and humidity
and compensation technique to be available to different environment and climate, significantly
increased anti-jamming capability. |
Safety capability: 1) Double password protection, only allowing authorized user to
operate. High safety. 2) Restoring the default value when system error because of
improper operation. 3).Uninterruptible power protection system using the battery working 2
to 8 hours , power failure protection system has a parameter
(optional) 4) Placed in the top of the host machine power supply can operate by
remote control or power control panel working on the machine.
Waterproof, moisture-proof and better heat dissipation. 5).Has no harm on those who have human cardiac pacemakers and
pregnant women, as well as magnetic floppy disk, tape, etc. |
Counting Function | Intelligent recording people number and alarm counting function
that can automatically record the number of people and times of
alarm. |
Alarm Recording | Times of alarm. Anytime can be check. |
Waterproof designs | use of imported waterproof synthetic material produced by precise
technology synthesis |
Place | can be set using the occasion required random mode (such as
airports, entertainment venues, the Court) |
Online help | Help system placed inside. More easy and intuitive to operate . |
Power supply
| AC85V -264V/50-60HZ |
Consumption power | 20w. Low power consumption and; Low radiation |
Overall dimension | 2230mm(height)X830mm(width)X580mm(depth) |
Tunnel dimension | 2000mm(height)X700mm(width)X500mm(depth) |
Weight of the whole machine | Approximately 68kg |
Workplace environment | -20℃+45℃ |
